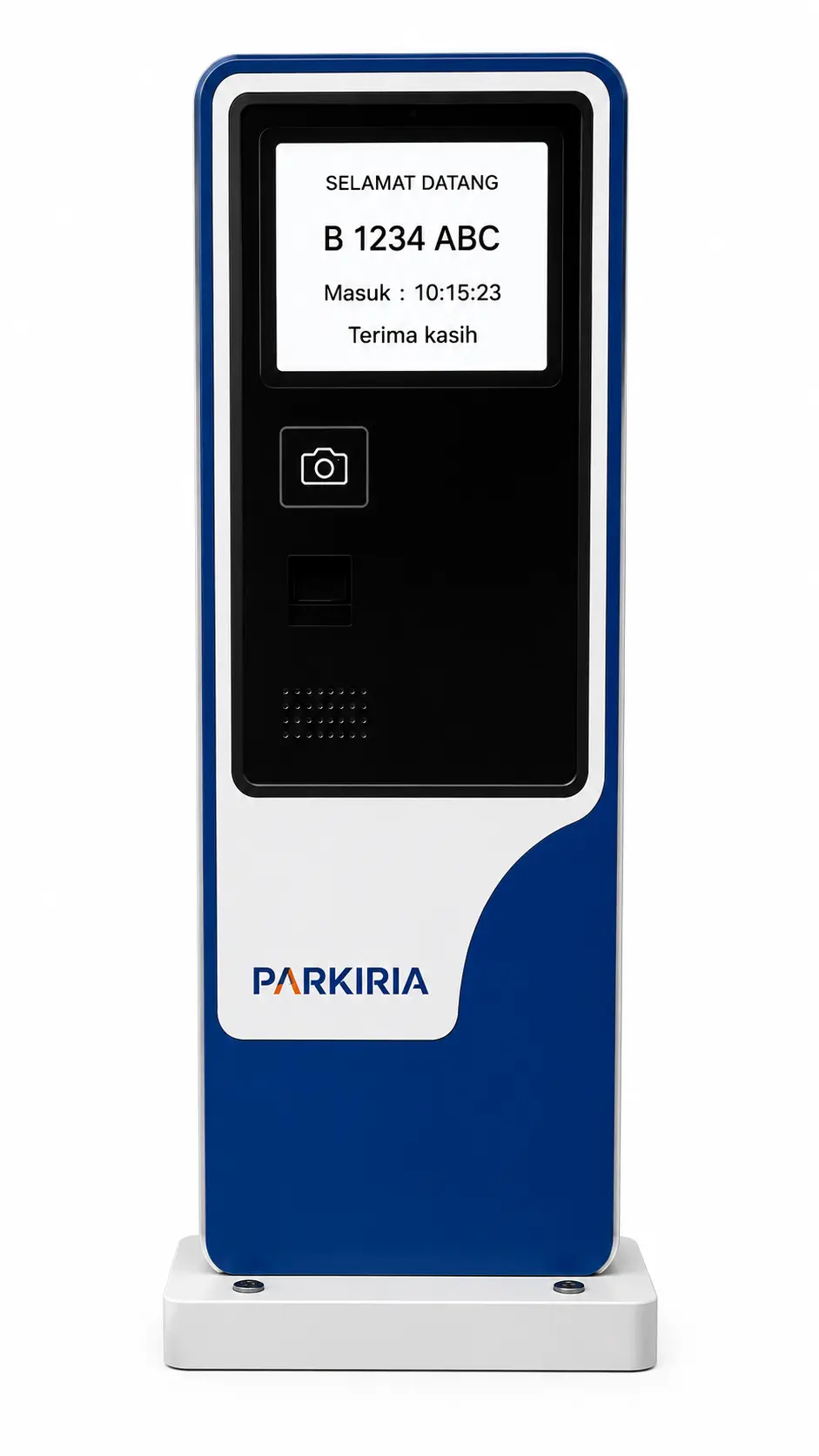

Entry terminal
A 7-inch screen and an ANPR camera. No payment module.
PARKIRIA / ENTRY TERMINAL

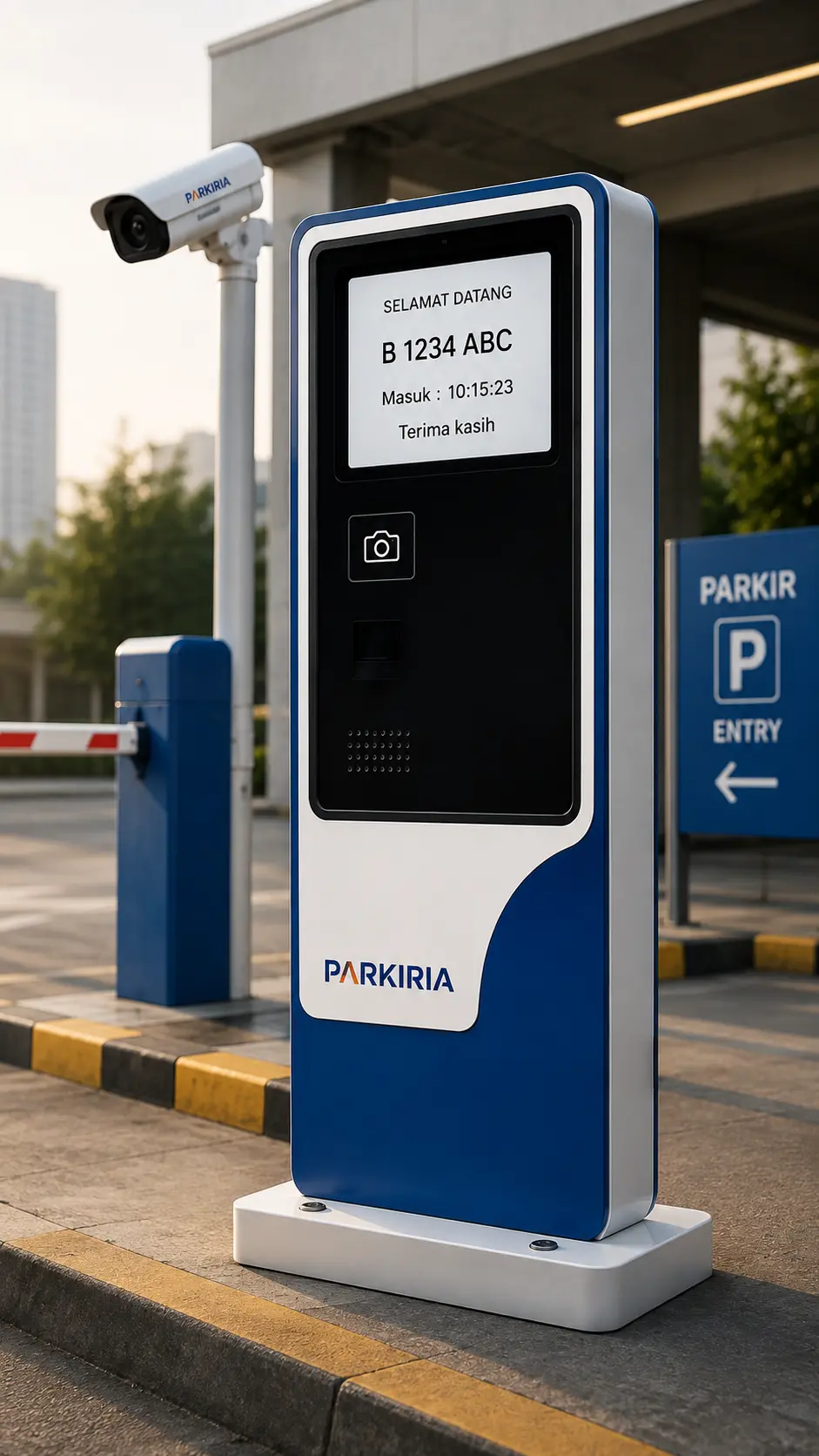

Smart parking,
without the ticket.
A complete parking system built on licence plate recognition, digital payment, and gate automation.
No tickets.
No extra steps.
PARKIRIA recognises a vehicle by its licence plate and opens a parking session without a physical ticket. Drivers press nothing at the entry gate.
From entry to exit.
- 01
Vehicle arrives
The vehicle approaches the entry terminal on the left of the lane.
- 02
Plate is read
The ANPR camera reads the licence plate and shows it on screen.
- 03
Entry time logged
The parking session starts automatically. No payment at the entry gate.
- 04
Fee shown on exit
The exit terminal displays plate, entry time, duration, and fee.
- 05
Choose payment
QRIS, tap an NFC or e-money card, or insert banknotes.
- 06
Payment verified
A receipt is printed if the driver needs one.
- 07
Barrier opens
The vehicle leaves and the parking session closes.
01 / RECOGNITION
Every vehicle, recognised automatically.
A 2MP ANPR camera reads the licence plate on the way in and on the way out. That plate is what links the two gates, which is why no ticket is needed.
- LICENCE PLATE
- B 1234 ABC
- STATUS
- RECOGNISED
02 / PAYMENT
Payment without friction.
The exit terminal takes three payment methods, so drivers use what they already carry.
- QRIS
- Scan the QR code on the terminal screen with any QRIS-enabled payment app.
- NFC / E-MONEY
- Tap an electronic money card on the 13.56 MHz NFC reader.
- BANKNOTES
- Insert banknotes into the validator. This terminal does not give change.
03 / AVAILABILITY
When the network drops, parking keeps running.
PARKIRIA is designed to keep essential parking operations running when the connection to the cloud is lost. Exact behaviour depends on the deployment configuration.
CLOUDDISCONNECTEDPARKIRIA EDGEENTRY / EXIT GATES
04 / SYSTEM
One system. Every parking operation.
Gate hardware, on-site processing, and central management work as a single chain.
PARKIRIA CLOUD
- Central management
- Reporting
PARKIRIA EDGE
- Parking sessions
- Tariffs
- Sync queue
GATES
- Entry terminal
- Exit terminal
- Barrier
- ANPR camera
05 / OPERATIONS
Everything that happens at the gate, visible in one place.
Device status, vehicle counts, and active sessions are monitored from a single view.
The view below is an interface concept, not a screenshot of a shipping product.
PARKING OPERATIONS
- ENTRY 01ONLINE
- ENTRY 02ONLINE
- EXIT 01ONLINE
- EXIT 02OFFLINE
- VEHICLES TODAY
- 1,284
- ACTIVE SESSIONS
- 156
06 / HARDWARE
Designed for the real world.
A powder-coated steel body rated IP54, operating from −20 °C to 60 °C.

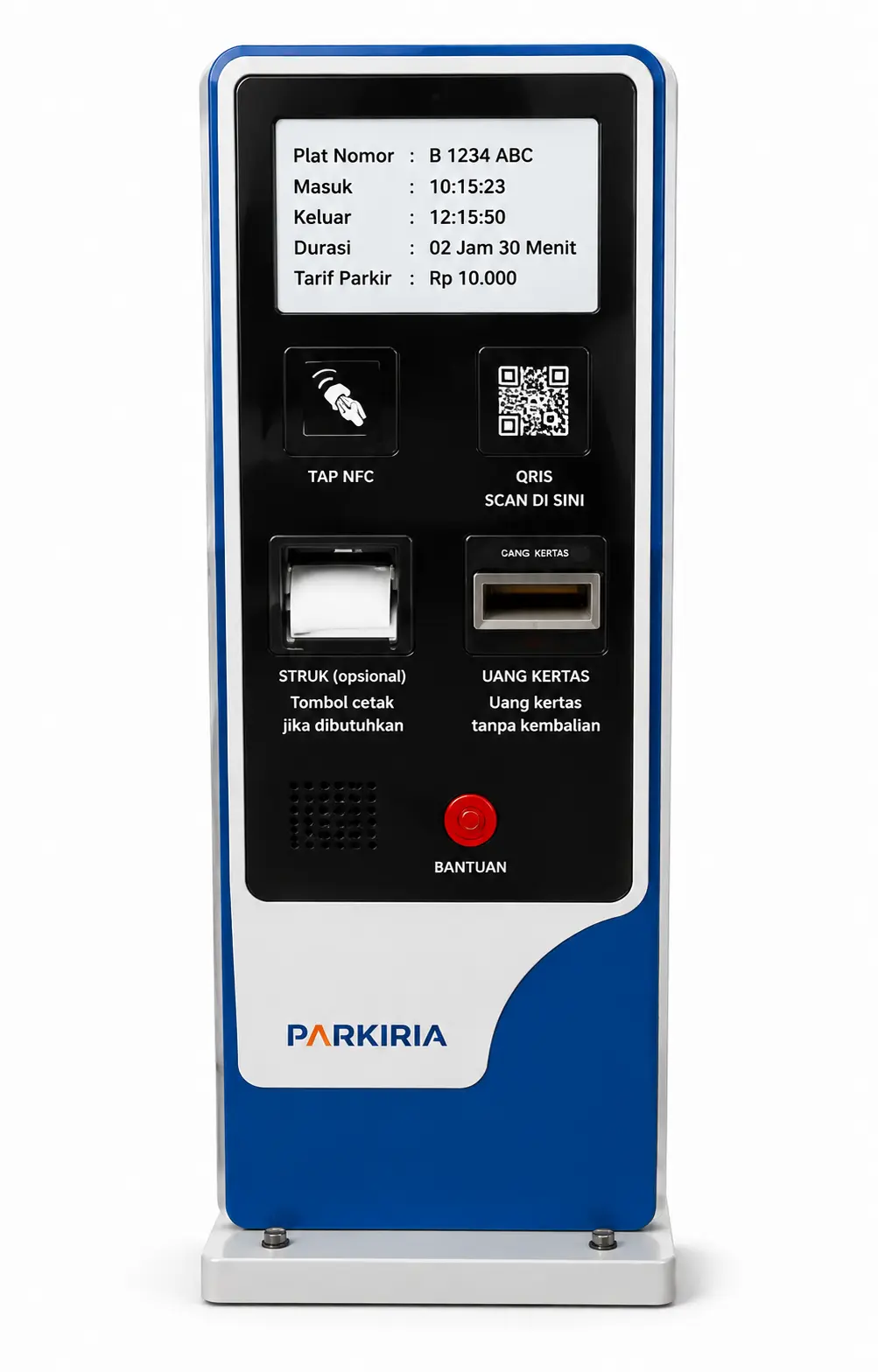

Exit terminal
A 7-inch screen, ANPR camera, QRIS, NFC, banknote validator, optional printer, and a help button.

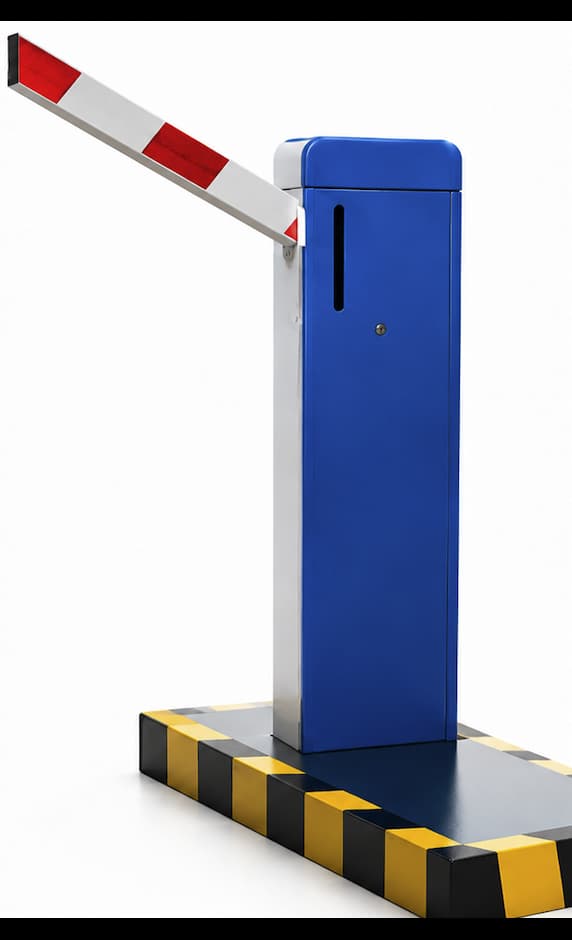

Barrier
Driven by the terminal once the plate is read or payment clears.

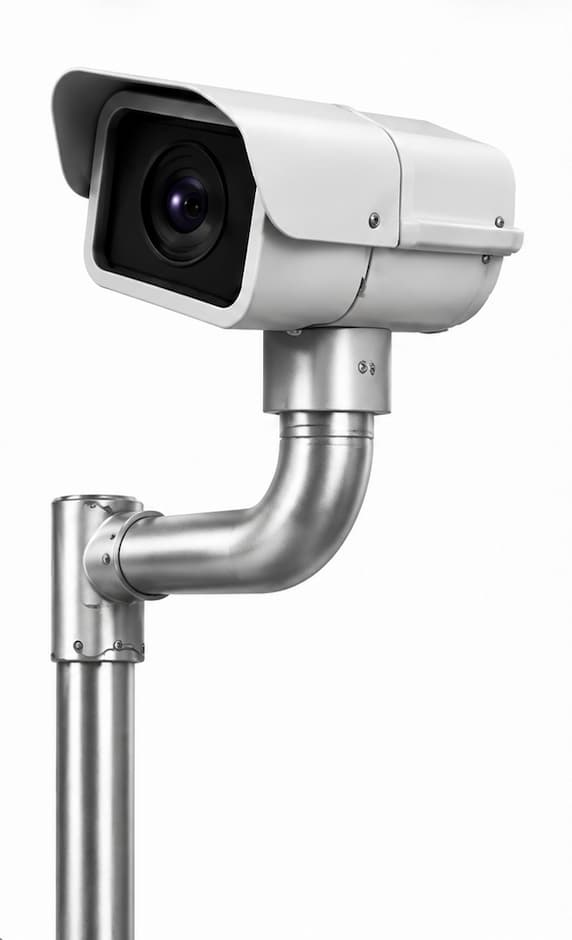

ANPR camera
A 2MP 1080p sensor, mounted to face the vehicle lane.
07 / SPECIFICATIONS
Technical specifications.
The specifications below represent the standard configuration of the entry and exit terminals. The final configuration depends on site requirements.
- Display
- 7" TFT LCD
- Resolution
- 1024 × 600
- Camera
- ANPR 2MP (1080p)
- NFC reader
- 13.56 MHz
- QRIS scanner
- 2D imager
- Printer
- Thermal 80mm (optional)
- Cash validator
- Banknote validator
- Intercom
- Full duplex
- Speaker
- 3 Watt
- Communication
- TCP/IP, 4G (optional)
- Power
- AC 220V, 50/60Hz
- Protection
- IP54
- Operating temperature
- −20 °C ~ 60 °C
- Material
- Powder-coated steel

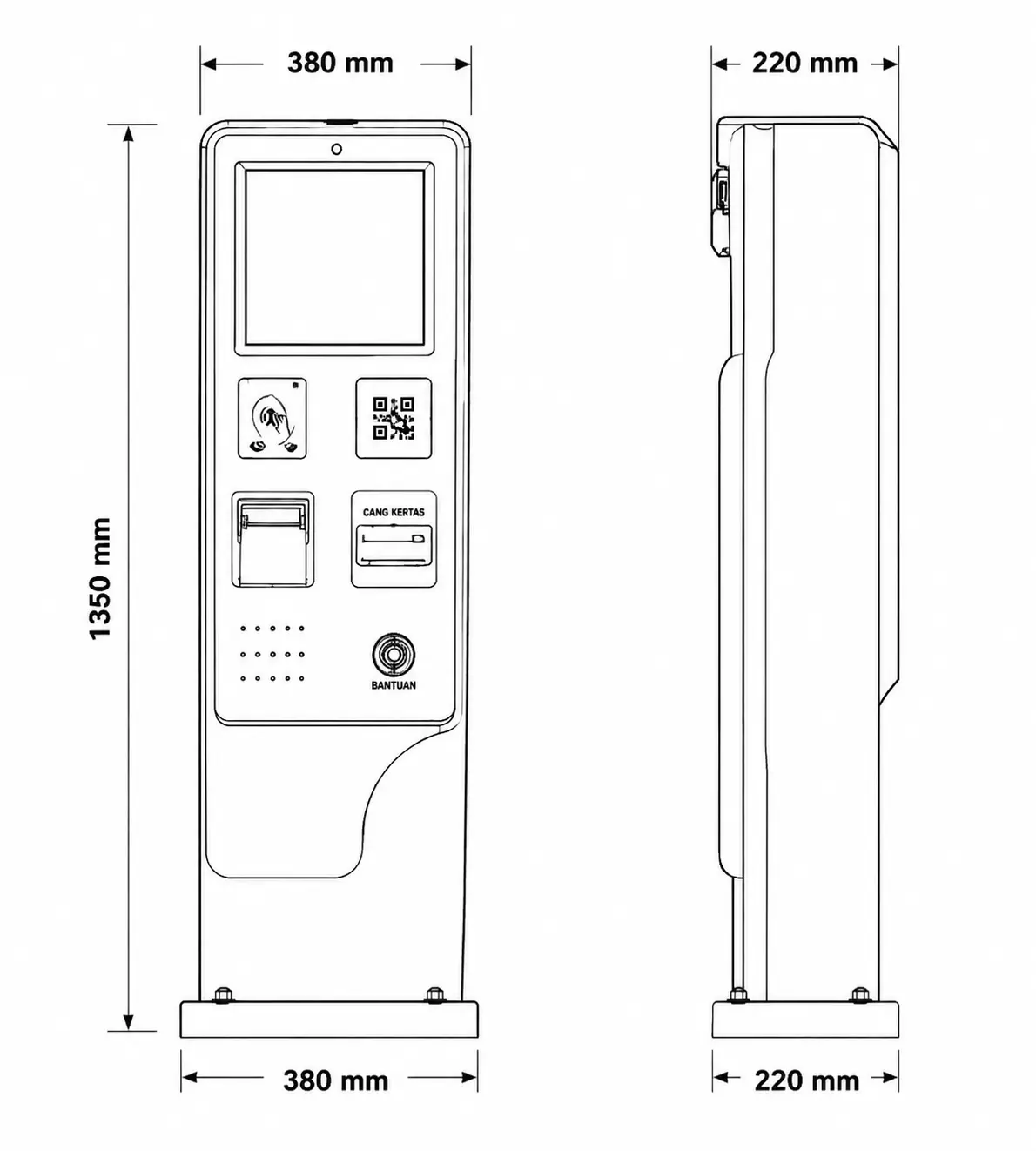

- Dimensions
- 380 × 1350 × 220 mm
08 / COMPONENTS
Main components.
- ANPR camera
- 2MP, 1080p
- 7" display
- TFT LCD, 1024 × 600
- NFC reader
- 13.56 MHz
- QRIS scanner
- 2D imager
- Receipt printer
- Thermal 80mm, optional
- Banknote validator
- No change given

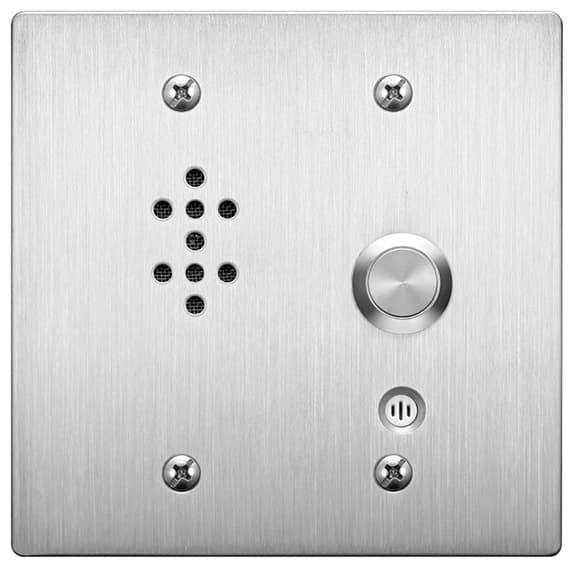

- Intercom
- Full duplex, 3 Watt speaker
01
02
03
04
05
06
07
10 / RELIABILITY
Built for everyday operation.
- Ticketless
- The licence plate replaces paper.
- Offline ready
- Essential operations run without a cloud connection.
- Weather resistant
- IP54 rated, powder-coated steel body.
- Three payment methods
- QRIS, NFC / e-money, banknotes.
Tell us about your parking site.
We work through gate counts, hardware configuration, pricing, and installation over WhatsApp.
11 / QUESTIONS
Questions we get.
What is PARKIRIA?
PARKIRIA is an integrated parking system combining licence plate recognition, ticketless parking, digital payment, and barrier automation.
Does PARKIRIA need parking tickets?
No. The system works from vehicle licence plate identification.
Which payment methods are supported?
Depending on the installation configuration, PARKIRIA supports QRIS, NFC / e-money, and banknotes. The banknote validator does not give change.
Is payment taken at the entry gate?
No. The entry terminal only reads the plate and logs the entry time. Payment happens at the exit terminal.
Can PARKIRIA run without internet?
PARKIRIA is designed with offline capability for essential parking operations. Exact behaviour depends on the deployment configuration.
Can PARKIRIA work with an existing barrier?
Integration depends on the barrier and controller model already installed and on site requirements. We check this before installation.
Can PARKIRIA be installed in a mall or apartment?
Yes. The system is intended for environments such as malls, apartments, offices, hospitals, hotels, and campuses.
How do I order PARKIRIA?
Contact PARKIRIA on WhatsApp to discuss requirements, configuration, pricing, and installation.
12 / CONTACT
Talk to PARKIRIA.
Tell us your location and how many gates you run. We reply with a configuration that fits.
